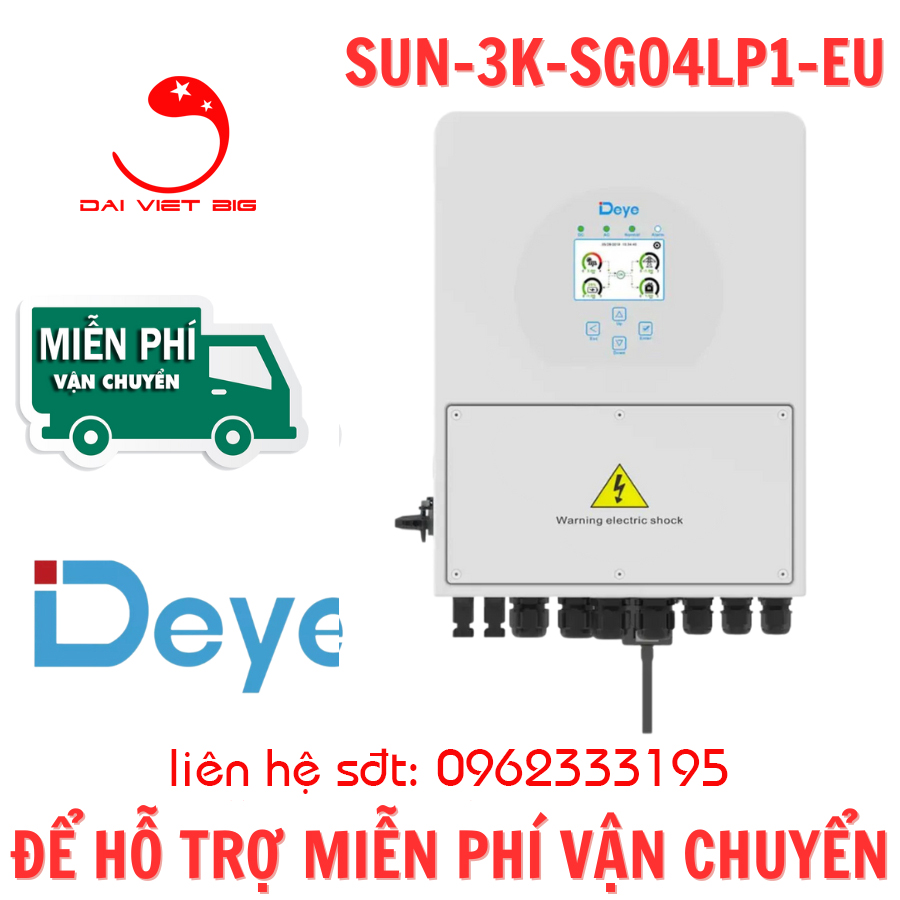

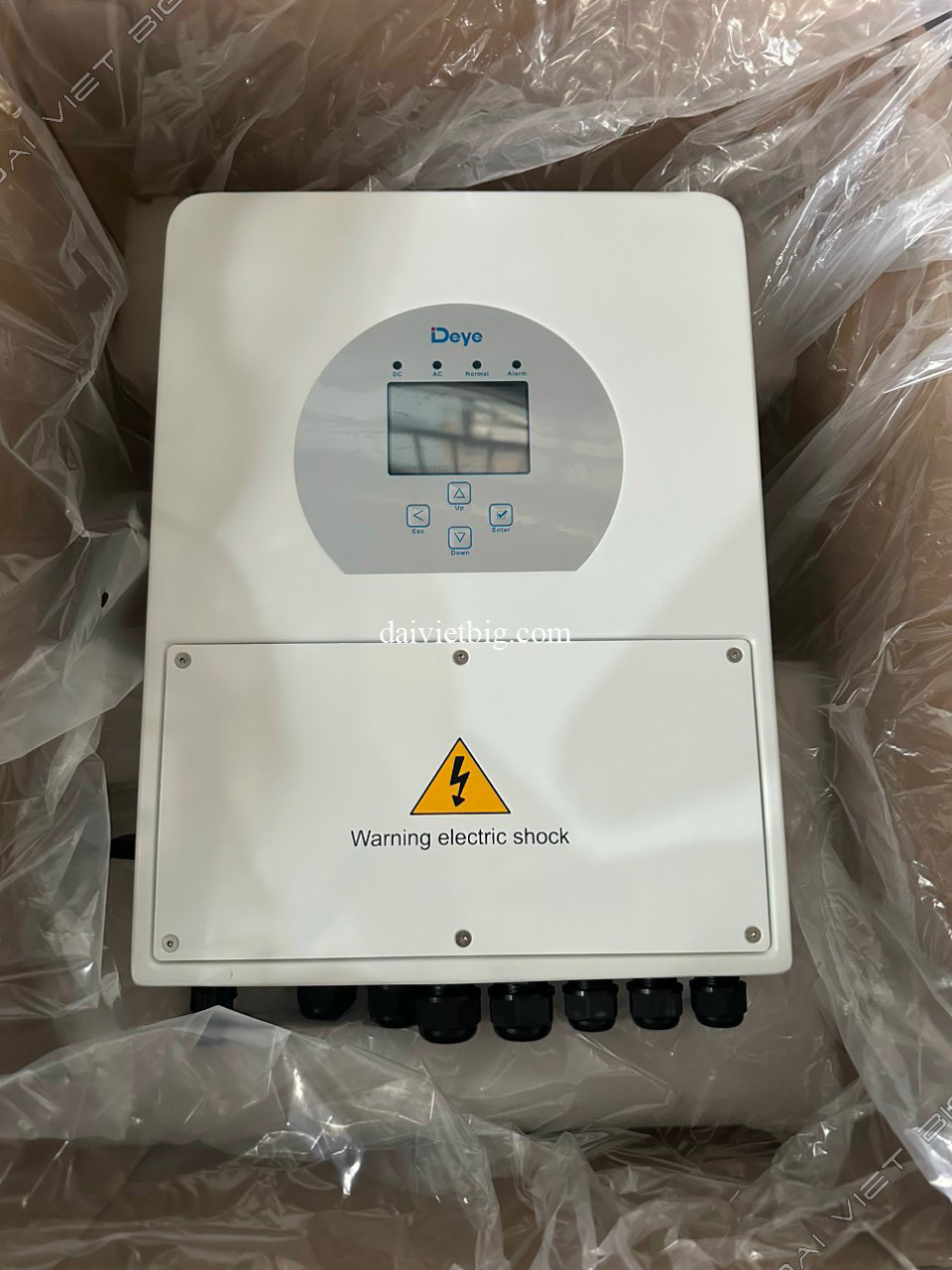

Thông số Inverter Hybrid 3kW DEYE SUN-3K-SG04LP1-EU
Model
SUN-3K-SG04LP1-EU
Battery Input Data Inverter Deye 3kW
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 70A
Max. Discharging Current (A) 70A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Inverter Hybrid Deye 3kW
Max. DC Input Power (W) 3900W
PV Input Voltage (V) 370V (100V~500V)
MPPT Range (V) 125~425V
Full Load DC Voltage Range 240~425V
Start-up Voltage (V) 125V
PV Input Current (A) 13A
Max. PV ISC (A) 17A
No.of MPPT Trackers 1/1
No.of Strings Per MPPT Tracker 1+1
AC Output Data
Inverter Deye 3kW
Rated AC Output and UPS Power (W) 3000W
Max. AC Output Power (W) 3300W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 13.6A
Max. AC Current (A) 15A
Max. Continuous AC Passthrough (A) 35A
Output Frequency and Voltage 50/60Hz; 220/230 / 240Vac (single phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Biến tần Hybrid Deye
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99.90%
Surge protection DC Type II / AC Type II
General Data
Inverter Hybrid Deye 3kW
Operating Temperature Range (℃) -25~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 20.5
Size (mm) 330W×580H×232D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
ĐẠI VIỆT BIG cam kết cung cấp cho Khách hàng:
✅ Sản phẩm đúng mẫu - đúng chất lượng - đúng giá.
✅ Với mọi lỗi kĩ thuật do nhà sản xuất: chúng tôi đổi - trả hoàn toàn miễn phí.
