General specifications
Product name
Eaton Moeller® series P3 Main switch
Part no.
P3-100/I5/SVB
EAN
4015082073732
Product Length/Depth
169 millimetre
Product height
280 millimetre
Product width
200 millimetre
Product weight
1.5 kilogram
Certifications
CSA
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
UL
Product Tradename
P3
Product Type
Main switch
Product Sub Type
None
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
Features & Functions
Features
Version as maintenance-/service switch
Version as main switch
Version as emergency stop installation
Version as safety switch
Fitted with:

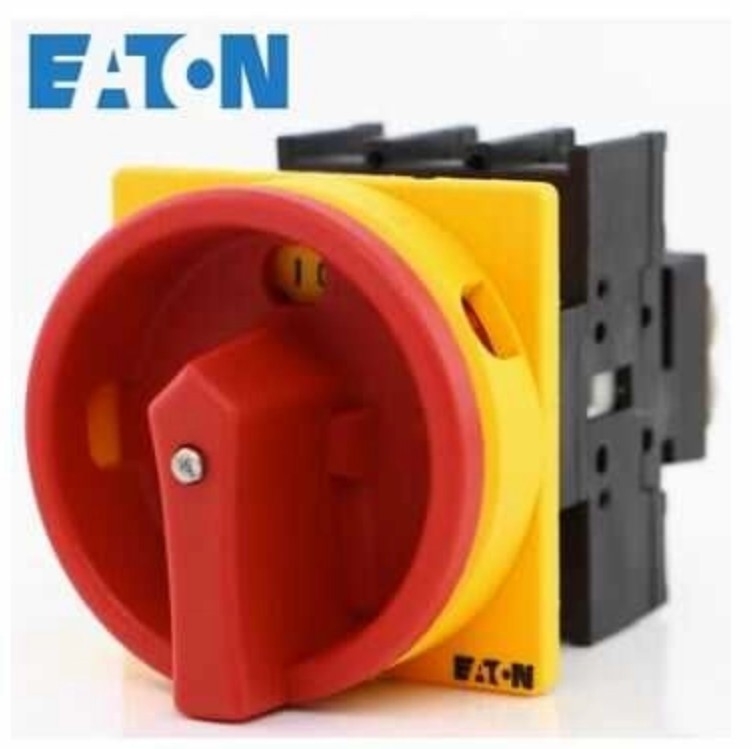

Red rotary handle and yellow locking ring
Functions
Emergency switching off function
Interlockable
Locking facility
Lockable in the 0 (Off) position
Number of poles
3
General information
Accessories
Auxiliary contact or neutral conductor fitted by user.
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
