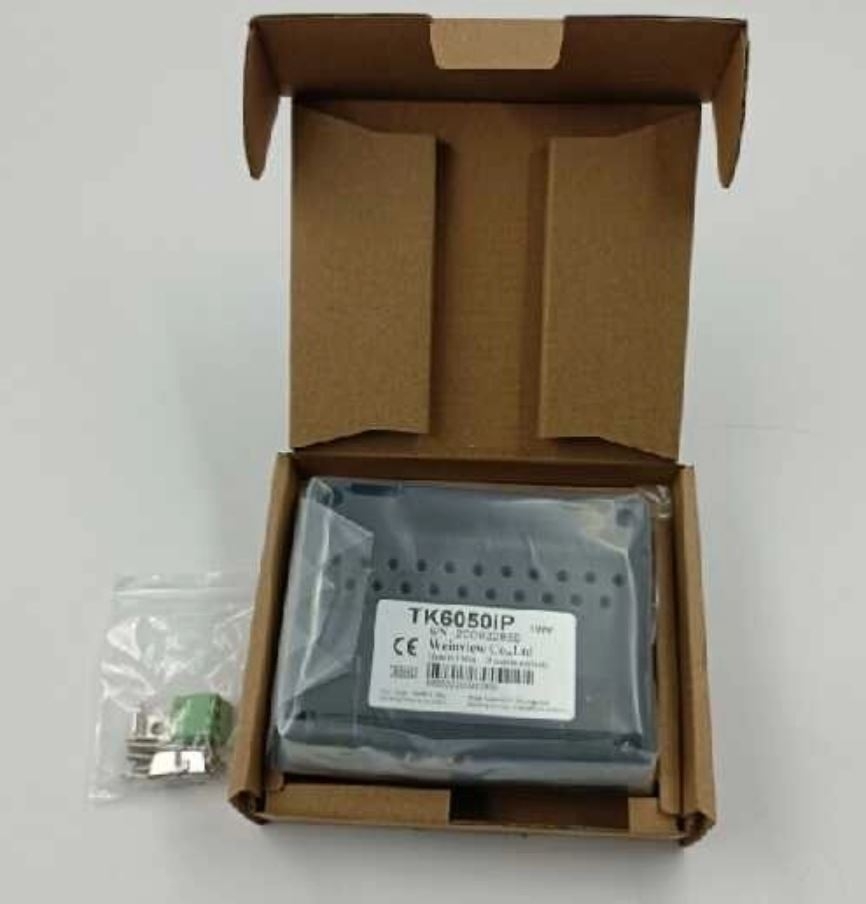

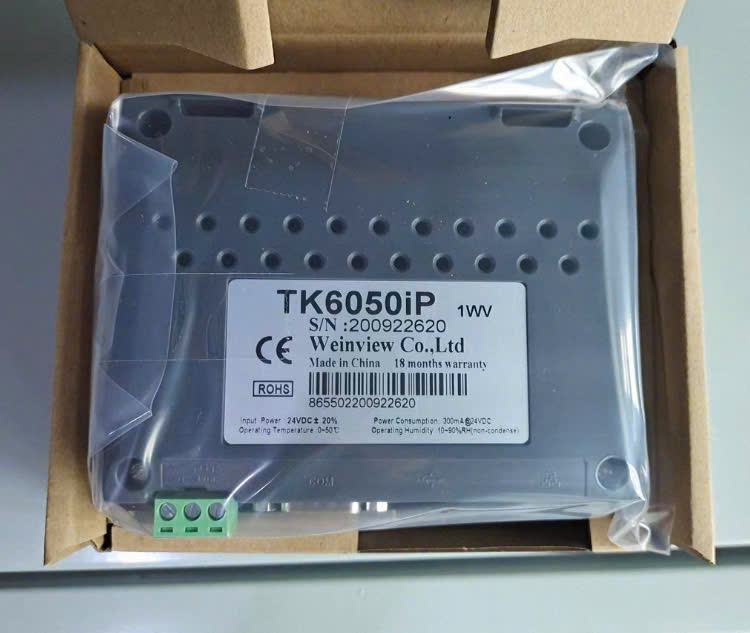

TK6050ip HMI
4.3 "TFT LCD 480x272
Without fan cooling system
IP65 panel protection level
LED backlight
1 USB Client
Com1 RS485 or Com3[RS485]2w support 187.5K MPI, but can only choose one to use at the same time
3 Performance specification
|
display |
Display type |
4.3”TFT |
|
resolution |
480*272 |
|
|
lightness (cd/m2) |
300 |
|
|
contrast |
500:1 |
|
|
backlight |
LED |
|
|
Backlight life |
30,000 hours |
|
|
color |
65536 |
|
|
Touch panel |
|
Four-wire analog resistance type |
|
memory |
Flash (MB) |
128 |
|
DRAM (MB) |
64 |
|
|
processor |
|
32Bit RISC 400MHz |
|
communication |
SD |
N/A |
|
USB Host |
N/A |
|
|
USB Client |
USB 2.0 x1 |
|
|
Ethernet |
N/A |
|
|
COM |
Com1:RS-232/RS-485 2w/4w, Com3:RS-485 2w |
|
|
Calendar |
|
NO |
|
power |
input |
24±20%VDC |
|
power |
250mA 24V |
|
|
Isolated power |
N/A |
|
|
Pressure-proof |
500VAC (1 munite) |
|
|
Insulating resistance |
50MW at 500VDC |
|
|
Quake-proof |
10 to 25Hz(X,Y,Z 2G 30munites) |
|
|
Specifications
|
Sheathing material |
ABS |
|
Outside measurement |
128 x 102 x 38mm |
|
|
Opening size(mm) |
119 x 93 |
|
|
Weight(kg) |
0.25 kg |
|
|
Operating Environment |
Protection level |
NEMA4/IP65 |
|
Storage Temperature |
-20 to 60°C (-4°to 140°F) |
|
|
Operating Temperature |
0°to 50°C(32°to 122°F) |
|
|
Operating Humidity |
10% to 90% 40°C |
|
|
CE Certification |
CE |
CE marked |
|
Software |
|
EB8000 V465.06 or latest version |
