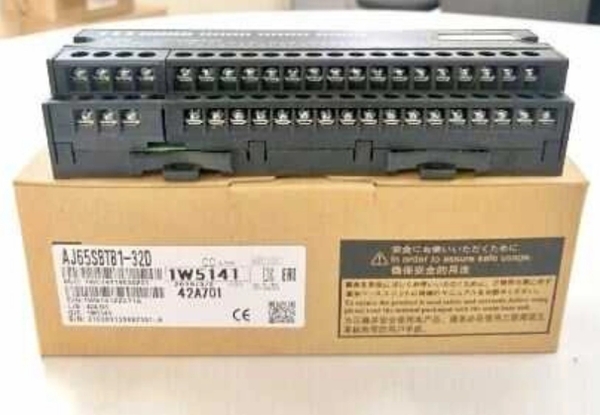

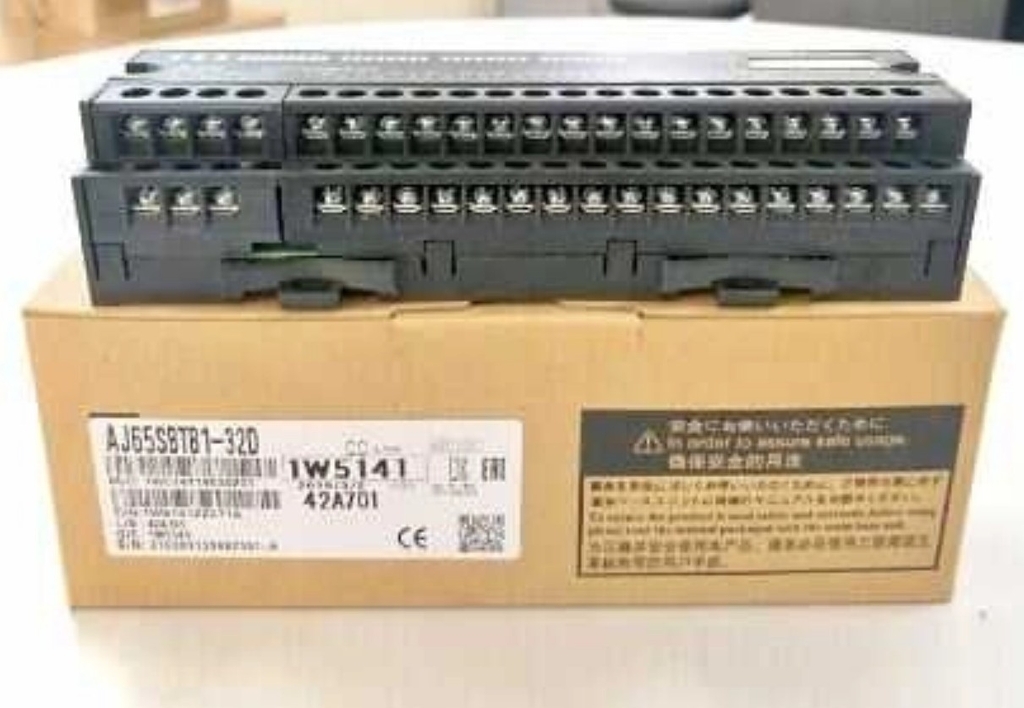

FA-MOD PLC: Digital I/O Module
| Series | CC-LINK |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,05 |
Product Dimensions & Weight
| Width (mm) | 179 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 40 |
| Weight (kg) | 0,26 |
